Reinforced Edge & Corner Protection

Differentiated Design Requirements for Reinforced Edge & Corner Protection by Coil Weight Class

Zhejiang Aoguan Thin Steel Technology Co., Ltd. specializes in manufacturing and exporting color-coated steel coils (PPGI and PPGL) to customers across Southeast Asia, Africa, the Middle East, and South America. With integrated production facilities in Zhejiang, Jiangsu, and Anhui, we understand that proper edge and corner protection is essential to maintain product integrity throughout the supply chain. Steel coils of different weight classes experience vastly different stresses during handling, stacking, and transport. This article details the differentiated design requirements for reinforced edge and corner protection across three weight classes: light coils (less than 5 tons), medium coils (5 to 15 tons), and heavy coils (over 15 tons).

1. Design Requirements for Light Coils (Weight < 5 Tons)

Light coils are generally more maneuverable and exert lower static and dynamic forces on packaging materials. However, they are also more susceptible to handling damage due to their lighter weight, which can lead to more aggressive handling by operators.

• Corner Guard Thickness: A minimum thickness of 6 mm for fiberboard or high-density PE corner guards is sufficient for light coils. This thickness provides adequate protection against typical handling impacts while keeping packaging costs economical.
• Coverage Width: The edge protector coverage width should be 50-80 mm. This range ensures that the coil edges are fully covered without excessive material usage. For coils with sensitive color-coated surfaces (PPGI/PPGL), the wider end of this range (80 mm) is preferred to distribute pressure over a larger area.
• Fixed Method: For light coils, corner guards can be secured using pressure-sensitive adhesive tape or clip-on designs. The guard should fit snugly around the coil circumference. Steel straps (typically 3 straps for coils with outer diameter up to 1,200 mm) provide secondary retention. No additional mechanical fastening is typically required.
• Under-Guard Padding: A 2-3 mm thick PE foam strip is placed between the corner guard and the coil surface to prevent micro-scratches and accommodate minor surface irregularities.
• Pallet Base Requirement: A standard wooden pallet with two contoured support cradles matching the coil's outer diameter is required. The pallet thickness should be at least 70 mm.

2. Design Requirements for Medium Coils (Weight 5-15 Tons)

Medium coils represent the most common weight range in export shipments. These coils require reinforced protection to withstand the increased forces encountered during lifting, container loading, and sea transport.

• Corner Guard Thickness: A minimum thickness of 10 mm for fiberboard or high-impact plastic corner guards is required. For coils with outer diameters exceeding 1,500 mm, 12 mm thickness is recommended to ensure adequate structural strength.
• Coverage Width: The edge protector coverage width should be 80-100 mm. This wider coverage provides a larger bearing surface for steel straps, reducing the risk of indentation and distributing the strapping tension more evenly across the coil edge.
• Fixed Method: Medium coils require both circumferential strapping and adhesive bonding. Steel straps (minimum 4 straps for coils with OD ≤1,500 mm, 5 straps for OD >1,500 mm) are applied over the corner guards. Additionally, high-strength double-sided tape or hot-melt adhesive is applied along the guard-coil interface to prevent rotation or displacement of the guards during handling.
• Under-Guard Padding: A 5 mm thick PE foam or felt pad is used under the corner guard. This thicker padding provides enhanced vibration dampening and protects the color coating from pressure marks.
• Pallet Base Requirement: A reinforced wooden pallet with a thickness of 90-100 mm is required. The support cradles should be made of hardwood and must match the coil curvature within ±3 mm tolerance. Rubber anti-slip pads (5 mm thickness) are placed between the cradle and the coil to prevent sliding.
• Edge Banding Reinforcement: For medium coils with high-value PPGI/PPGL coatings, an additional layer of 0.5 mm galvanized steel edge banding is recommended over the fiberboard corner guard. This metal shield protects against impact from sharp objects during forklift and crane operations.

3. Design Requirements for Heavy Coils (Weight > 15 Tons)

Heavy coils present the greatest challenge for edge and corner protection. The massive weight generates extreme pressures during stacking and transport, requiring the most robust protective solutions.

• Corner Guard Thickness: A minimum thickness of 12-15 mm is required. For coils exceeding 20 tons, 15 mm thickness with steel-reinforced construction is mandatory. The corner guards are typically manufactured from multi-layer laminated fiberboard with an outer skin of 0.8 mm galvanized steel sheet.
• Coverage Width: The edge protector coverage width must be 120-150 mm. This extensive coverage ensures that the massive strapping forces are distributed over a sufficiently large area to prevent localized crushing of the coil edges.

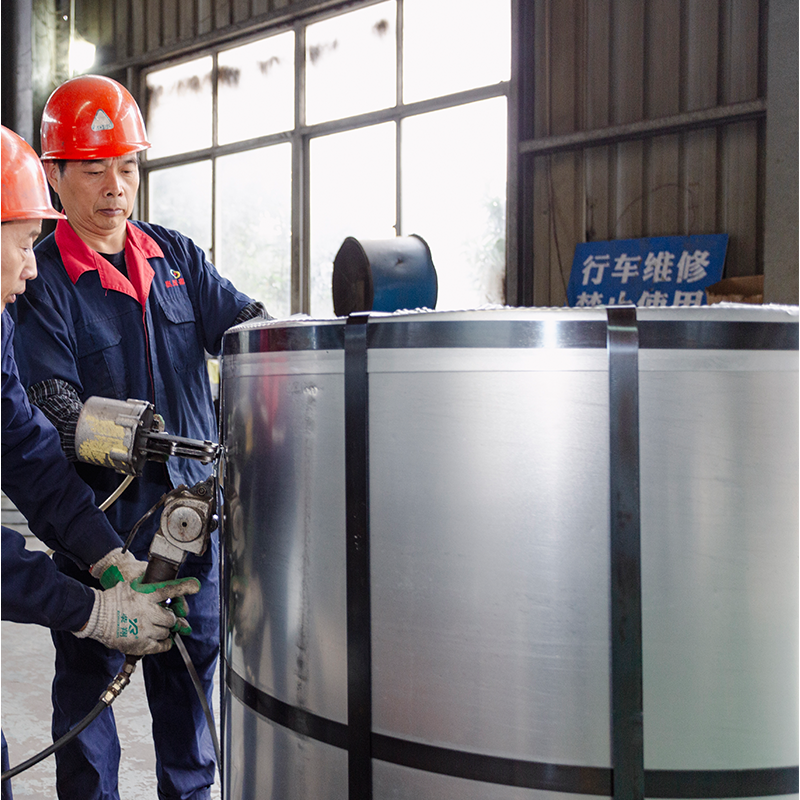

• Fixed Method: Heavy coils require a multi-point mechanical fastening system. Steel straps (minimum 6 straps, with 40 mm width and 1.0 mm thickness) are applied over the corner guards. Additionally, steel brackets or L-shaped metal clips are bolted through the corner guards to the coil's inner or outer circumference to positively lock the guards in place. Anti-loosening lock washers are used on all mechanical fasteners.
• Under-Guard Padding: A 10 mm thick combination layer of PE foam and non-woven fabric is used. This multi-layer padding provides maximum protection against both impact and vibration-induced abrasion during extended ocean voyages.
• Pallet Base Requirement: A heavy-duty steel-reinforced wooden pallet with a thickness of 120-150 mm is required. The support cradles must be fabricated from laminated hardwood with steel reinforcement plates at the load-bearing points. The pallet must be designed to support 2.5 times the coil weight as a safety factor.
• Metal Outer Shield: For the heaviest coils, a full outer shield of 0.8-1.0 mm galvanized steel sheet is wrapped around the entire circumference, overlapping the corner guards. This shield provides puncture resistance and protects the packaging from damage during multi-modal transport operations.

4. Comparative Parameter Summary by Weight Class

The following table provides a clear comparison of all design parameters across the three weight classes for easy reference:

5. Application Guidelines for PPGI and PPGL Color-Coated Coils

Zhejiang Aoguan Thin Steel Technology Co., Ltd. produces high-quality color-coated steel coils with premium surface finishes that require special attention during edge and corner protection design.

• Coating Sensitivity: PPGI and PPGL surfaces are more susceptible to indentation and scratching compared to bare galvanized steel. Therefore, the under-guard padding thickness recommended for each weight class should be increased by 20-30% when packaging color-coated products.
• Contact Material Compatibility: All materials that come into direct contact with the coated surface must be pH-neutral and free from plasticizers or chemicals that could migrate and cause coating discoloration or adhesion loss.
• Strapping Protection: Even with proper corner guards, steel straps on color-coated coils require an additional strip of PE foam or non-woven fabric between the strap and the guard surface. This prevents strap vibration from wearing through the guard and contacting the coating during transport.
• Inspection Requirement: For every color-coated coil, a final visual inspection of the edge protection is performed to confirm that no metal edge is exposed and that all padding materials are properly positioned.

6. Quality Control and Compliance

At Zhejiang Aoguan Thin Steel Technology Co., Ltd., we implement strict quality control procedures for all reinforced edge and corner protection applications across our three manufacturing facilities in Zhejiang, Jiangsu, and Anhui.

• Material Certification: All corner guards, padding materials, and strapping products are sourced from certified suppliers with documented quality certificates. Fiberboard corner guards are tested for compressive strength (minimum 1.5 MPa for 10 mm thickness).
• In-Process Verification: During packaging, tension meters are used to confirm that steel straps are tensioned to the specified range for each weight class. Corner guard positioning and coverage are verified by visual inspection with a template gauge.
• Drop Test Validation: Sample packages from each weight class undergo drop testing from 1.2 meters onto concrete surfaces to validate the edge protection design. No damage to the coil edge or coating is acceptable.

Our headquarters in Chuansha, Shanghai, coordinates these quality assurance activities to ensure consistent protection standards for all shipments. We are committed to delivering Reinforced Edge & Corner Protection that meets the highest international standards for our customers in Southeast Asia, Africa, the Middle East, and South America.

Frequently Asked Questions (FAQ)

FAQ 1: Can the same edge protection design be used for all coil weight classes to simplify packaging operations?

While using a single design would simplify inventory and training, it is not recommended from a technical or economic standpoint. Applying heavy-duty protection (12-15 mm guards, 120-150 mm coverage) to light coils (<5 tons) adds unnecessary packaging costs (approximately 30-40% higher than required) and creates bulkier packages that are less convenient for customers to handle and unpack. Conversely, applying light-duty protection (6 mm guards, 50-80 mm coverage) to heavy coils (>15 tons) creates a significant risk of edge damage, which can lead to coil rejection, customer claims, and logistics delays. Therefore, the appropriate design should be selected based on the actual coil weight. At Zhejiang Aoguan Thin Steel Technology Co., Ltd., our packaging teams are trained to identify the correct weight class and apply the corresponding protection design. We maintain separate inventory of packaging materials for each class and follow standardized checklists to ensure proper application. This approach optimizes both protection effectiveness and packaging cost efficiency.

Zhejiang Aoguan Thin Steel Technology Co., Ltd. is a trusted manufacturer and exporter of PPGI and PPGL products. With our integrated operations from production to packaging, we provide customized protection solutions for every order. Our commitment to quality and innovation ensures that our customers receive products in perfect condition, ready for their applications in construction, appliances, and other industries.

FAQ 2: How do I determine the correct weight class for a steel coil if the exact weight is not known before packaging?

The coil weight is typically indicated on the production certificate, shipping documentation, and the coil's identification tag. In cases where the exact weight is not readily available, the coil dimensions can provide an accurate estimate. The formula for estimating coil weight is: Weight (kg) = (OD² - ID²) × Width × 0.00785 × 0.785, where OD and ID are in millimeters and width is in millimeters. For example, a coil with OD 1,200 mm, ID 508 mm, and width 1,000 mm would weigh approximately 7,300 kg, falling into the medium weight class (5-15 tons). If the estimate is close to a class boundary (e.g., 14.5 tons), we recommend applying the higher-class protection to provide a safety margin. Zhejiang Aoguan Thin Steel Technology Co., Ltd. maintains complete weight records for every coil produced and uses this data to pre-select the appropriate packaging design before the coil enters the packaging line.

Zhejiang Aoguan Thin Steel Technology Co., Ltd. is dedicated to providing reliable steel coil solutions to customers worldwide. Our facilities in Zhejiang, Jiangsu, and Anhui are equipped with accurate weighing systems that record each coil's weight during production. With our sales headquarters in Chuansha, Shanghai, we coordinate packaging decisions based on precise product data, ensuring that your Reinforced Edge & Corner Protection is perfectly matched to your coil's specifications.

FAQ 3: Are there any environmental or regulatory requirements that affect the choice of materials for reinforced edge and corner protection?

Yes, several environmental and regulatory factors must be considered. First, wooden pallets and support cradles must comply with ISPM 15 regulations, requiring heat treatment (HT) or fumigation (MB) with the IPPC mark stamped on the wood. Second, for shipments to the European Union, packaging materials must comply with the EU Packaging and Packaging Waste Directive (94/62/EC), which restricts heavy metals in packaging components. Third, some customers require packaging materials to be 100% recyclable or biodegradable—in such cases, fiberboard edge protectors are preferred over plastic alternatives. Fourth, VCI paper used in conjunction with edge protection must be free from nitrites and secondary amines for RoHS compliance. Zhejiang Aoguan Thin Steel Technology Co., Ltd. stays updated on all international packaging regulations and maintains documentation to support compliance for all export shipments. Our materials are sourced from suppliers who provide certificates of conformity for each relevant regulation.

Zhejiang Aoguan Thin Steel Technology Co., Ltd. serves customers in diverse markets including Southeast Asia, Africa, the Middle East, and South America, each with specific regulatory frameworks. Our experience in international trade and our commitment to quality ensure that every shipment meets the required standards. We look forward to building long-term partnerships and contributing to our customers' success.

Chemical Compatibility and Anti-Scratch Requirements for Contact Materials in PPGI/PPGL Coil Packaging

Zhejiang Aoguan Thin Steel Technology Co., Ltd. specializes in the production and export of color-coated steel coils (PPGI and PPGL) to customers in Southeast Asia, Africa, the Middle East, and South America. With manufacturing facilities in Zhejiang, Jiangsu, and Anhui, and our sales headquarters in Chuansha, Shanghai, we are dedicated to delivering products with stunning hues and exceptional visual effects. The sensitive coated surfaces of PPGI/PPGL products require special attention in packaging design. Unlike bare galvanized steel, the organic coating layers (polyester, silicone-modified polyester, PVDF, etc.) are vulnerable to chemical attack, abrasion, and pressure marking. This article details the specific chemical compatibility and anti-scratch requirements for packaging contact materials, including VCI rust-preventive paper, non-woven fabrics, and PE foam.

1. Chemical Compatibility Requirements for Contact Materials

The organic coatings on PPGI/PPGL products can react adversely with certain chemicals commonly found in packaging materials. Ensuring chemical compatibility is essential to prevent coating discoloration, loss of adhesion, or surface degradation.

• VCI Paper Formulation Compatibility: Volatile Corrosion Inhibitor (VCI) papers used for PPGI/PPGL must be specifically formulated for coated steel surfaces. Standard VCI papers designed for bare steel often contain amines or nitrites that can migrate into the organic coating and cause discoloration (yellowing or blooming). For color-coated products, only VCI papers with neutral pH (6.5-7.5) and amine-free, nitrite-free formulations are acceptable. The paper must pass the ASTM D1748 humidity cabinet test without causing any detectable change in coating color or gloss when placed in direct contact for 72 hours at 50°C.
• Plasticizer Migration Prevention: Any plastic film (PE, PVC, or polypropylene) used in contact with the coated surface must be free from migrating plasticizers such as phthalates, adipates, or sebacates. These chemicals can leach into the coating over time, particularly under the elevated temperatures encountered in container shipping, leading to softening, tackiness, or interlayer delamination. All films must be certified as "plasticizer-free" with documented test results.
• pH Neutrality of Paper Products: All paper-based contact materials (VCI paper, kraft paper, interleaving paper) must have a neutral pH of 6.5-7.5. Acidic papers (pH below 6.0) can accelerate coating degradation and promote under-film corrosion. Basic papers (pH above 8.5) can cause saponification of polyester coatings, leading to loss of adhesion and chalking. Regular pH testing of incoming paper materials is mandatory.
• Absence of Sulfur and Chlorine Compounds: Contact materials must be free from sulfur-containing and chlorine-containing compounds. Sulfur compounds can react with the zinc or aluminium-zinc substrate beneath the coating, causing blistering or loss of adhesion. Chlorine compounds are known to induce stress corrosion cracking in certain coating systems. Material certificates must declare "sulfur-free" and "chlorine-free" status.
• Heavy Metal Content Compliance: All contact materials must comply with RoHS and REACH regulations, with heavy metal content (lead, cadmium, mercury, hexavalent chromium) below the regulated limits (typically <100 ppm for each restricted substance). This is particularly important for shipments to the European Union and markets that follow EU standards.

2. Anti-Scratch and Surface Protection Requirements

The aesthetic quality of PPGI/PPGL products is a primary selling point. Preventing scratches, indentations, and abrasion during packaging, handling, and transport is paramount.

• Surface Friction Coefficient: All materials that contact the coated surface must have a low coefficient of friction (typically less than 0.3) to prevent micro-abrasion caused by vibration during transport. Non-woven fabrics and PE foam are preferred over smooth films, which can cause sticking and scuffing.
• Abrasive Particle Exclusion: Contact materials must be manufactured in clean environments to prevent the inclusion of abrasive particles (such as mineral fillers, glass fibers, or metallic dust). Even microscopic particles can act as abrasives under the constant micro-movement of the coil during shipping, resulting in a "matt" or "scratched" appearance. All materials must pass a cleanliness test using a black cloth wipe method (no visible residue).
• Pressure Distribution and Indentation Prevention: Under the tension of steel straps or the weight of stacked coils, contact materials must distribute pressure evenly to prevent localized indentation of the coating. PE foam with a density of 25-35 kg/m³ and thickness of 3-5 mm is typically used as a pressure-distributing layer. The foam must recover to at least 90% of its original thickness after compression testing at 5 MPa for 24 hours.
• Surface Finish Compatibility: For gloss coatings (high-gloss PPGI), contact materials must have a smooth, lint-free surface to prevent the transfer of texture patterns. For textured coatings (embossed or matte finishes), the contact material should have a slightly open structure to avoid causing compression marks on the raised surface features.
• Edge Protection Interface: Where rigid edge protectors (fiberboard or plastic) contact the coated surface, an intermediate layer of soft material (PE foam or non-woven felt) is mandatory. The hardness of the edge protector (measured by Shore D or similar) must be matched to the coating type—softer coatings require softer interface materials.

3. Material Selection and Specification Summary

The following table provides a detailed comparison of key properties and requirements for each contact material type used in PPGI/PPGL packaging:

4. Coating Type-Specific Compatibility Considerations

Different types of PPGI/PPGL coatings have varying sensitivity to chemical and physical contact. The following guidelines apply to the most common coating types:

• Polyester (PE) Coatings: Standard polyester coatings are generally compatible with most approved contact materials, but are sensitive to saponification by alkaline substances. Contact materials must be pH-neutral (6.5-7.5). Acidic materials (pH below 6.0) can cause hydrolysis of the ester bonds, leading to chalking and loss of gloss.
• Silicone-Modified Polyester (SMP) Coatings: SMP coatings offer improved hardness and anti-fouling properties but can be sensitive to silicone contamination. Contact materials must be free from silicone-based release agents or additives, as these can cause dewetting or surface defects on the coating.
• Polyvinylidene Fluoride (PVDF) Coatings: PVDF coatings have excellent chemical resistance but are more susceptible to physical pressure marking. Thicker PE foam padding (5 mm) and lower strap tension (10-15% reduction) are recommended for PVDF-coated coils. Contact materials must be free from ketones and esters, which can attack the PVDF binder.
• Polyurethane (PU) Coatings: PU coatings are sensitive to moisture and certain amines. VCI papers used with PU coatings must be specifically formulated to release only inhibitors that do not contain reactive amines. The VCI paper must be double-wrapped to ensure complete moisture exclusion.

5. Quality Control and Testing Protocols

Zhejiang Aoguan Thin Steel Technology Co., Ltd. implements strict quality control measures to verify the compatibility and performance of all packaging contact materials used for PPGI/PPGL coils.

• Incoming Material Testing: Every batch of contact materials is subjected to incoming quality inspection. VCI paper is tested for pH, basis weight, and VCI release rate. PE foam is tested for density, compression set, and thickness uniformity. Non-woven fabric is tested for surface friction and fiber shedding.
• Compatibility Test (Coupon Test): For each new batch of contact material or coating type, a coupon test is performed. A sample of the contact material is placed in contact with a coated test panel under pressure (simulating strap tension) at 50°C for 72 hours. The panel is then inspected for discoloration, gloss change, adhesion loss, and surface deformation. No visual or measurable change is acceptable.
• Vibration Simulation Test: A fully packaged sample coil is subjected to vibration testing at frequencies simulating road and sea transport (5-200 Hz, 1-2 g acceleration) for 4 hours. After testing, the coil is unpacked and inspected for any scratches, scuffing, or pressure marks caused by contact material movement.
• Documentation and Traceability: All test results are documented, and each batch of packaging materials is assigned a lot number that is recorded on the packaging specification sheet for every coil. This ensures complete traceability in case of any quality issue.

At Zhejiang Aoguan Thin Steel Technology Co., Ltd., we combine these rigorous material specifications with careful application techniques to ensure that our Reinforced Edge & Corner Protection works in harmony with surface-compatible contact materials. Our commitment to quality ensures that every PPGI/PPGL coil arrives at its destination with its stunning visual appearance fully preserved.

Frequently Asked Questions (FAQ)

FAQ 1: Can standard VCI paper designed for galvanized steel be used for PPGI/PPGL color-coated coils?

No, standard VCI paper designed for galvanized steel should not be used for PPGI/PPGL color-coated coils. Standard VCI papers often contain amines, nitrites, or other corrosion inhibitors that are effective for bare metal surfaces but can migrate into organic coatings. These chemicals can cause discoloration (yellowing or whitening), surface blooming, or loss of coating adhesion over time, particularly under the elevated temperatures experienced in container shipping. For color-coated products, VCI paper must be specifically formulated for coated surfaces. It should be amine-free, nitrite-free, pH-neutral (6.5-7.5), and must pass a compatibility coupon test (contact at 50°C for 72 hours) without any visible or measurable change to the coating. At Zhejiang Aoguan Thin Steel Technology Co., Ltd., we source only certified VCI papers for our PPGI/PPGL products and perform compatibility testing on each new batch to ensure complete protection without any chemical interaction.

Zhejiang Aoguan Thin Steel Technology Co., Ltd. is a dedicated manufacturer and exporter of high-quality color-coated steel coils. Our headquarters in Chuansha, Shanghai, coordinates with our production facilities in Zhejiang, Jiangsu, and Anhui to ensure that every coil is packaged with materials that are fully compatible with its specific coating type. We are committed to delivering products that maintain their stunning hues and exceptional visual effects from factory to final destination.

FAQ 2: What is the recommended padding thickness for protecting PPGI/PPGL surfaces under steel straps, and does it vary by coating type?

The recommended padding thickness under steel straps for PPGI/PPGL coils is typically 3-5 mm of PE foam or non-woven felt. The specific thickness depends on the coating type and the coil weight. For standard polyester (PE) coatings on coils weighing 5-10 tons, 3 mm padding is generally sufficient. For silicone-modified polyester (SMP) or polyurethane (PU) coatings, which are slightly more sensitive to pressure, 4 mm padding is recommended. For polyvinylidene fluoride (PVDF) coatings, which are known to be more susceptible to pressure marking, 5 mm padding with lower strap tension (10-15% reduction) is advised. Heavy coils (over 15 tons) require 5 mm padding regardless of coating type to compensate for the higher strapping tension. The padding must cover the full width of the steel strap and extend 10-15 mm beyond the strap edges on both sides to prevent the strap from contacting the coated surface even if it shifts slightly during transport. The foam density should be 25-35 kg/m³ to ensure adequate compression recovery after the packaging process.

Zhejiang Aoguan Thin Steel Technology Co., Ltd. applies these thickness recommendations as part of our standard packaging specifications. Our experienced packaging team selects the appropriate padding based on the specific product type and order requirements. With factories in Zhejiang, Jiangsu, and Anhui, and a global customer base in Southeast Asia, Africa, the Middle East, and South America, we ensure that every shipment receives protection tailored to its unique characteristics.

FAQ 3: How can I test or verify that a packaging material is chemically compatible with my PPGI/PPGL coating?

The most reliable method is to perform a coupon compatibility test. This involves obtaining a small sample of the packaging material (VCI paper, foam, film, or non-woven fabric) and placing it in direct contact with a coated test panel that matches your PPGI/PPGL product. Apply light pressure (simulating strap tension) and place the test assembly in an oven at 50°C for 72 hours. After this period, remove the material and inspect the coated panel for any change in: color (use a colorimeter to measure ΔE, with ΔE < 0.5 being acceptable); gloss (measured at 60° with a gloss meter, with change within ±5 units acceptable); adhesion (cross-cut tape test per ASTM D3359, with no loss of adhesion); and surface condition (visual inspection for blistering, softening, or tackiness). Additionally, for VCI papers, you can perform a simple pH test using pH indicator paper moistened with distilled water to confirm neutrality (pH 6.5-7.5). For non-woven fabrics, a tape adhesion test (pressing tape onto the material and peeling to check for loose fibers) can confirm low-fiber-shedding properties. These tests provide definitive evidence of compatibility before full-scale packaging is implemented.

Zhejiang Aoguan Thin Steel Technology Co., Ltd. performs these compatibility tests on all incoming packaging materials as part of our quality assurance program. Our commitment to quality and innovation ensures that our products meet the highest standards for surface protection. We look forward to collaborating with partners worldwide to build a brighter future together.
